Portable Avionics Interfaces for USB 2.0
Put a New Tool in Your Pocket!
Ballard Portable Avionics Interfaces for USB 2.0 are pocket-sized adapters that enable computers to communicate with, simulate, test, and monitor avionics equipment and systems. These rugged USB 2.0 peripherals feature extensive databus functionality and are compatible with virtually all modern PC laptop, desktop, and tablet computers.
These versatile interfaces are suitable for a wide range of applications in the lab and in the field. They support maximum data throughput on all channels and have a large 32 MB built-in memory. All power necessary for operation is provided via the single USB port. Plug and Play and Hot Swap features make them easy to install and move between computers.
Models Available for Single or Multiple Protocols
The New UA2000 Series
The Ballard UA2000 family builds on over 10 years of success in USB interfacing with an all-new USB 3.1 design that will serve your interface needs for years to come.
- Compatible with USB 2, USB 3, USB 4, and Thunderbolt™ ports
- USB-C connection for native compatibility with newer computers
- All-new design provides long serviceable life for good return on investment
- 100% backward compatible with USB 2.0
USB Multi. One tool does it all!
LEGACY PRODUCT
Should not be specified for new programs. more >
Ballard pocket-sized USB Multi adapters are the easy and portable way to interface your computer to multiple avionics databuses simultaneously. This provides greater convenience and cost savings when interfacing to multiple databus types.
Protocols include:
- MIL-STD-1553
- EBR 1553
- ARINC 429
- ARINC 708
- ARINC 717
- Serial
- Discrete I/O
USB 1553
LEGACY PRODUCT
Should not be specified for new programs. more >
Ballard pocket-sized USB 1553 adapters enable computers to communicate with, simulate, test, and monitor MIL-STD-1553 equipment and systems. Depending on the model, each 1553 channel may be either single-function, multi-function, or bus monitor only. Single-function channels can be configured as either a Bus Controller (BC), a Bus Monitor (BM), or up to 32 Remote Terminals (RTs). Multi-function channels have protocol error injection capability and can simultaneously be a BC, BM, and up to 32 RTs.
Key Features include:
- Up to 2, dual-redundant MIL-STD-1553 channels
- Error injection (Multi-function only)
- Transformer and direct coupling
- Transformer coupled cable included
USB 429
LEGACY PRODUCT
Should not be specified for new programs. more >
Ballard pocket-sized USB 429 adapters enable computers to communicate with, simulate, test, and monitor ARINC 429 and 717 equipment and systems. Models are available with ARINC 429 channels only, ARINC 717 channels only, or a combination of both.
Key Features include:
- Up to 16 ARINC 429 channels (12R4T)
- Up to 2 ARINC 717 channels (2R2T)
- Handles periodic and transfer protocols
- Message filters and schedules
- Standard and non-standard bit rates
- Error detection and selective injection
- Variety of syncs and triggers
USB 708
LEGACY PRODUCT
Should not be specified for new programs. more >
Ballard pocket-sized USB 708 adapters enable computers to interface with ARINC 708 and similar weather radar display databuses. These rugged USB 2.0 peripherals feature extensive functionality for testing and simulating weather radar systems, CDUs (Control-Display Units), and T-R (Transmit-Receive) units. The ARINC 708 display databus is sometimes referred to as ARINC 453.
Key Features include:
- Up to 4 ARINC 708 channels (1R1T or 2R2T)
- Receive, transmit, and monitor
- ActiveX Weather Radar Control program building block available
- Direct coupled channels per 708
- Strappable on-board termination
The Easy Avionics Interface

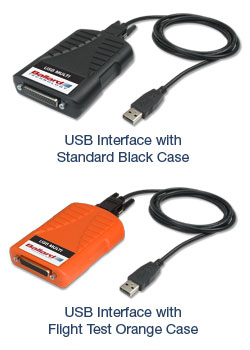

Choice of Case Color
Standard Black Case
Flight Test Orange Case
Compact and Powerful
The easiest way to interface a PC to an avionics databus is through a USB peripheral. Ballard pocket-sized USB interfaces have become the industry favorite for databus test, analysis and simulation. They simply plug into any available USB port and are ready for use in the lab or in the field. Combine these interfaces with CoPilot, our intuitive graphical software program, to easily monitor, record, replay, analyze, and simulate avionics bus data.

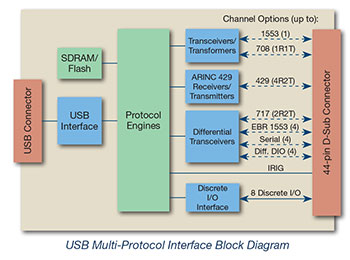

A Model to Meet Your Need
Ballard multi-protocol interfaces for USB 2.0 can be ordered with a combination of different protocols to enable you to meet your varied databus needs with a single device. In addition to MIL-STD-1553 and ARINC protocols, these devices are available with EBR 1553 and serial. Single-protocol models offer higher channel counts for their specific protocol. The Ordering Information section below shows the models that are available, along with protocol and channel counts. For full specifications, download the product datasheets in the Additional Information section further below. Interfaces for USB 3.1 are also available by clicking here.
Applications
- Databus analysis, test, and simulation
- Data loading
- Flightline and AOG support
- Replacing plug-in cards
- Many more uses in the lab or in the field
Key Features
- Multi-protocol or single-protocol models
- Avionics protocols available:
- MIL-STD-1553
- EBR 1553
- ARINC 429
- ARINC 708
- ARINC 717
- Serial
- Discrete I/O - USB 2.0 bus powered—no external power supply needed
- 8 Avionics Discrete I/O
- IRIG A/B PWM and AM
- 32 MB on-board memory
- LEDs indicate bus traffic and errors
- Small, portable, and rugged
- RoHS compliant design
- Interfaces for USB 3.1 also available
Ordering Information
A newer product is available, click here to view the UA2000 Series.
LEGACY PRODUCT - Moving to END-OF-LIFE on August 29, 2025
Legacy product End-of-Life announcement offers extensive transition period to purchase available stock. Every effort will be made to support existing customers and programs. This product should not be specified for new programs.
Click here for more information on Legacy products.
Select your desired USB model(s) in the tables below. For more information or to request a quote, call +1.425.339.0281 or fill out the form at the bottom of the page.
Purchasing with CoPilot Test & Analysis Software
CoPilot Software is licensed to a specific Ballard hardware device using a purchased 'key' that is programmed into the hardware itself. This key allows CoPilot to interact with that device. Receive a discount when purchasing the CoPilot Software 'key' bundled with a new hardware purchase. Although the CoPilot license allows you to install CoPilot software on as many computers as you need for pre-run setup, scripting, or post analysis, each Ballard hardware device you want to run with CoPilot requires its own purchased license key. Visit the CoPilot page for more information.
USB Multi Models
| MIL-STD-1553 | ARINC 429 | ARINC 708 | ARINC 717 | EBR 1553 | Serial | Hardware & CoPilot Bundle | Hardware Only |
| 1 Multi-function | 4R2T | – | – | – | – | CP-UA1531 | UA1531 |
| 1 Multi-function | 4R2T | – | 2R2T | – | – | CP-UA1532 | UA1532 |
| 1 Multi-function | 4R2T | – | – | – | 4 ports | CP-UA1533 | UA1533 |
| 1 Multi-function | – | – | – | – | 4 ports | CP-UA1534 | UA1534 |
| 1 Multi-function | – | – | – | 4 ports | – | CP-UA1535 | UA1535 |
| 1 Single-function | 4R2T | – | – | – | – | CP-UA1521 | UA1521 |
| 1 Single-function | 4R2T | – | 2R2T | – | – | CP-UA1522 | UA1522 |
| 1 Single-function | 4R2T | – | – | – | 4 ports | CP-UA1523 | UA1523 |
| 1 Single-function | – | – | – | – | 4 ports | CP-UA1524 | UA1524 |
| 1 Single-function | – | – | – | 4 ports | – | CP-UA1525 | UA1525 |
| 1 Bus Monitor | 4R2T | – | – | – | – | CP-UA1511 | UA1511 |
| 1 Bus Monitor | 4R2T | – | 2R2T | – | – | CP-UA1512 | UA1512 |
| 1 Bus Monitor | 4R2T | – | – | – | 4 ports | CP-UA1513 | UA1513 |
| 1 Bus Monitor | – | – | – | – | 4 ports | CP-UA1514 | UA1514 |
| 1 Bus Monitor | – | – | – | 4 ports | – | CP-UA1515 | UA1515 |
| – | 4R2T | – | – | – | 4 ports | CP-UA1503 | UA1503 |
| – | 4R2T | 1R1T | – | – | – | CP-UA1571 | UA1571 |
| – | 4R2T | 1R1T | 2R2T | – | – | CP-UA1572 | UA1572 |
| – | 4R2T | 1R1T | – | – | 4 ports | CP-UA1573 | UA1573 |
| – | – | 1R1T | – | – | 4 ports | CP-UA1574 | UA1574 |
| – | – | – | – | 4 ports | – | CP-UA1505 | UA1505 |
USB 1553, USB 429/717, USB 708 Models
| Protocol | Channels | Hardware & CoPilot Bundle | Hardware Only |
| MIL-STD-1553 | 2 Multi-function | CP-UA1133 | UA1133 |
| MIL-STD-1553 | 1 Multi-function | CP-UA1130 | UA1130 |
| MIL-STD-1553 | 2 Single-function | CP-UA1122 | UA1122 |
| MIL-STD-1553 | 1 Single-function | CP-UA1120 | UA1120 |
| MIL-STD-1553 | 1 Multi-function, 1 Bus Monitor | CP-UA1131 | UA1131 |
| MIL-STD-1553 | 1 Single-function, 1 Bus Monitor | CP-UA1121 | UA1121 |
| MIL-STD-1553 | 2 Bus Monitor | CP-UA1111 | UA1111 |
| MIL-STD-1553 | 1 Bus Monitor | CP-UA1110 | UA1110 |
| MIL-STD-1553 | 4 Bus Monitor* | CP-UA1140 | UA1140 |
| ARINC 429 | 12R4T | CP-UA1440 | UA1440 |
| ARINC 429 | 8R4T | CP-UA1430 | UA1430 |
| ARINC 429 | 4R2T | CP-UA1420 | UA1420 |
| ARINC 429 | 1R1T | CP-UA1410 | UA1410 |
| ARINC 429 / ARINC 717 | 8R4T / 2R2T | CP-UA1431 | UA1431 |
| ARINC 717 | 2R2T | CP-UA1401 | UA1401 |
| ARINC 708 | 2R2T | CP-UA1720 | UA1720 |
| ARINC 708 | 1R1T | CP-UA1710 | UA1710 |
*Channels are non-redundant
nRnT = number of Receive/Transmit channels
Multi-function Channels
Multi-function channels have protocol error injection capability and can simultaneously be a Bus Controller (BC), Bus Monitor (BM), and up to 32 Remote Terminals (RTs).
Single-function Channels
Single-function channels can be configured in software as either a Bus Controller (BC), a Bus Monitor (BM), or up to 32 Remote Terminals (RTs).
Options
To order options, add the appropriate suffix to the end of the part number. Example: CP-UA1133/FTO
• /FTO - Flight Test Orange case in place of the standard black
case
• /NE - No Enclosure,
Printed Circuit Board Assembly only, for embedded use
• /FXY - Conformal coating
(Parylene)
Accessories
The following accessories are included with all models except /NE versions:
• 1553 transformer-coupled I/O cable with PL-75 connectors, 3 ft. long (USB 1553 models only)
• USB-A cable with
screw-locks (5 ft)
• Mating HD44P D-Sub I/O connector
• Software CD
Software
BTIDriver Application Programming Interface (included)
Device Driver Software (included)
CoPilot Test & Analysis Software (optional)
Cables & Accessories
A wide variety of cables and accessories are available to complement these products.
Browse Cables & Accessories
Let's Start the Conversation
For more information or to request a quote, fill out the form below or call us at: +1.425.339.0281
