Single Sensor Enhanced Vision Systems
Your Solution for Improved Visibility
Rely on the industry leading Max-Viz enhanced vision systems (EVS) from Astronics to enhance your safety and situational awareness while flying.
Flight-proven and certified, our systems provide you with clear vision in reduced visibility conditions such as fog, smoke, and darkness. Our Max-Viz EVS systems are easy to install, easy to integrate into your cockpit displays, and easy to maintain.
These state-of-the-art enhanced vision systems are lightweight, solid-state, low power, uncooled thermal cameras. Some EVS models include zoom capability. Compatible with leading MFDs and EFBs, the sensor image can appear on any display that accepts composite video (RS-170), NTSC, or PAL signals.
Experience the Difference
Max-Viz Enhanced Vision Systems enable you to see terrain, runways, taxiways, and obstacles in poor visibility conditions such as fog, smoke, precipitation, and darkness.

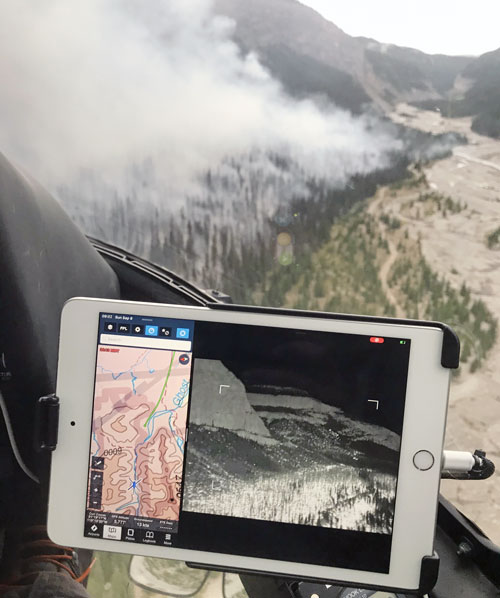

This image of the Max-Viz EVS display shows how the pilot is able to see extensive details of the terrain through the smoke of a forest fire providing vital situational awareness and increased flight safety.
Select Your System

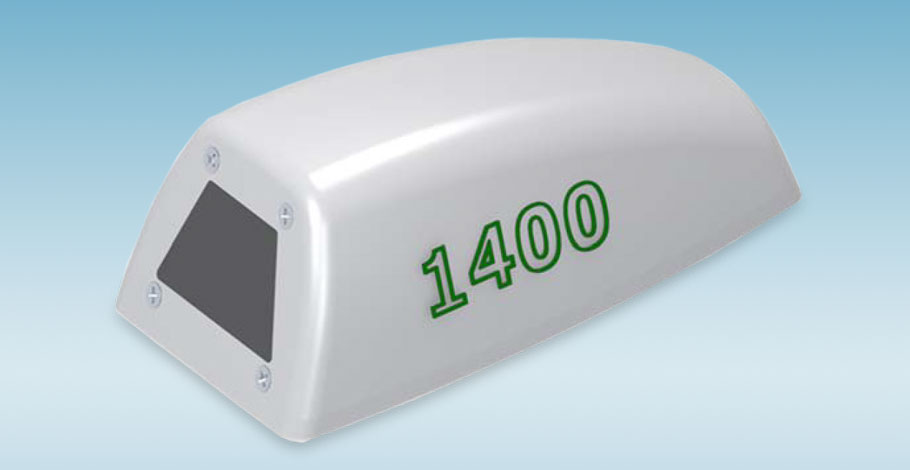

Max-Viz 1400 Higher Resolution
The Max-Viz 1400 is an Enhanced Vision System using a 640 x 480 pixel resolution long wave infrared thermal imager with electronic zoom and polarity select.

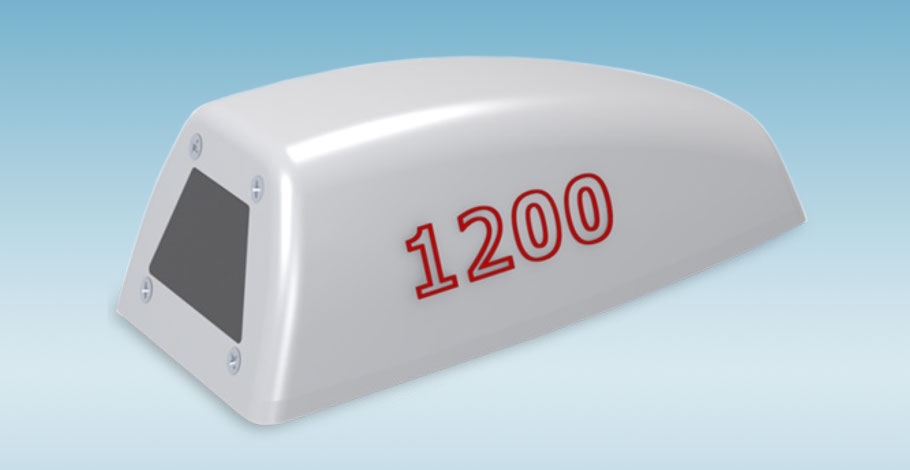

Max-Viz 1200 Standard Resolution
The Max-Viz 1200 is an Enhanced Vision System using a 320 x 240 pixel resolution long wave infrared thermal imager.
Both Models Feature:
- Single LRU, easy installation
- Lightweight and low power
- Metal faring design
- Composite video (RS-170) NTSC signal is compatible with leading MFDs & EFBs
- Integral window heaters for operation in all conditions
- Solid-state technology – no routine maintenance required
