LMR Communications System Analyzers

Cutting-Edge Service Monitors for Seamless Land Mobile Radio Testing and Troubleshooting

Communications System Analyzers from Astronics provide all of the necessary tools to test and troubleshoot Land Mobile Radios in one, portable instrument.

With support for all major protocols, including P25, TETRA, DMR, NXDN, and PTC, our service monitors are field-portable, offering alignment and AutoTune capabilities for any radio OEM.

Capable of servicing both radio system infrastructure and subscriber units, our LMR test equipment features cutting edge instrumentation, including Vector Network Analyzer, Spectrum Analyzer, Tracking Generator, Oscilloscope, Signal Generator, SINAD Meter, Return Loss, and many more.

Whether you’re a first responder, radio technician, law enforcement, or any other occupation requiring urgent communications, ensure your radios perform as designed with LMR Test Equipment from Astronics.

Communications System Analyzers

ATS-9000M

Our most powerful, versatile service monitor, the ATS-9000M provides all of the essential tools for both field and bench radio servicing in one portable device. Powered by advanced processors, enhanced RF components, and a responsive, updated OS, it supports all protocols and offers AutoTunes for all major radios.

Key Features

Vibrant 10.1-inch LCD touch screen display
Two-port and one-path Vector Network Analyzer (VNA)
Subscriber and infrastructure test in one
Enhanced Spectrum Analyzer, AM, FM, and P25 performance
Adjustable Resolution Bandwidth

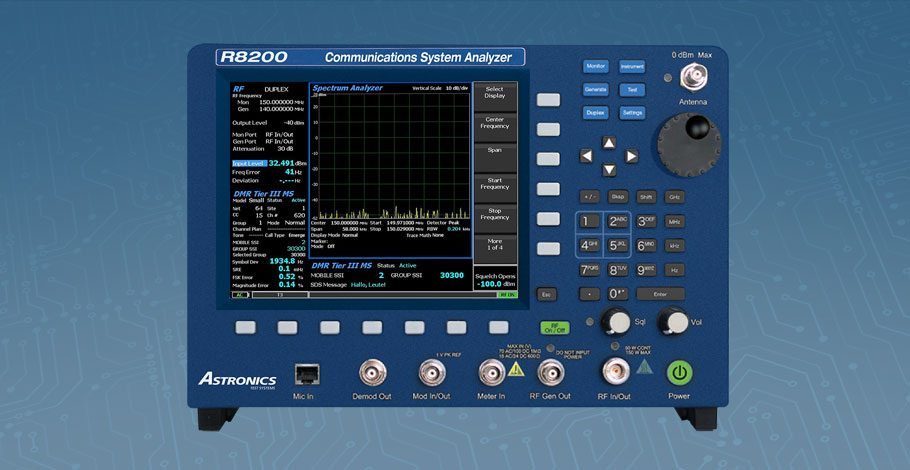

R8200

The R8200 is a versatile communications system analyzer designed for testing, analyzing, and troubleshooting modern analog and digital radio systems. Featuring a built-in, single port Vector Network Analyzer, it offers a full-color touchscreen, comprehensive test capabilities, and robust portability, making it ideal for field technicians and engineers working with various communication technologies.

Key Features

Single-port Vector Network Analyzer (VNA)
Brilliant, color-enhanced display
Field-portable, featuring an internal Lithium Ion battery
Intuitive, field-upgradeable operating system

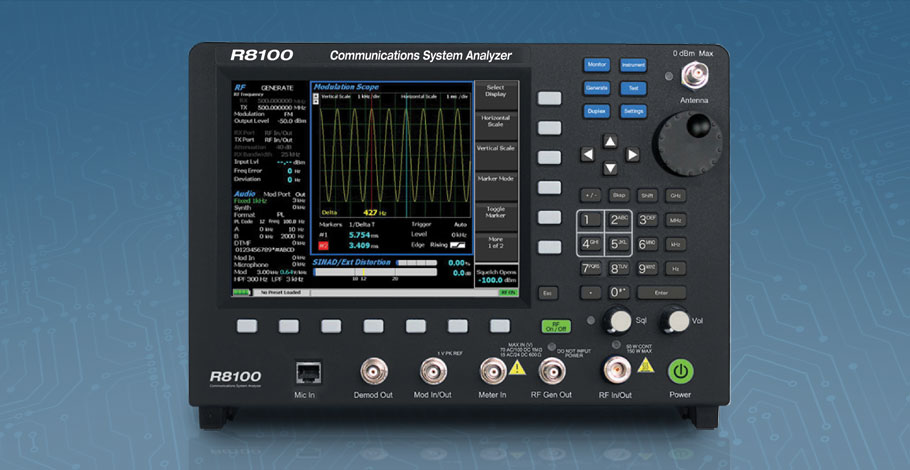

R8100

The R8100 is a compact and powerful LMR communications analyzer that excels in testing and maintaining both analog and digital radios. With a user-friendly interface, extensive diagnostic tools, and durable design, it ensures efficient field operations and reliable performance for communications technicians and maintainers in any industry.

Key Features

Field-portable, featuring an internal Lithium Ion battery
Class 3 Mil-Spec shock and vibration rated for nearly any LMR test environment
Dual-Display, showing multiple instruments on-screen simultaneously
Powerful software-based instrumentation allows for instant updates

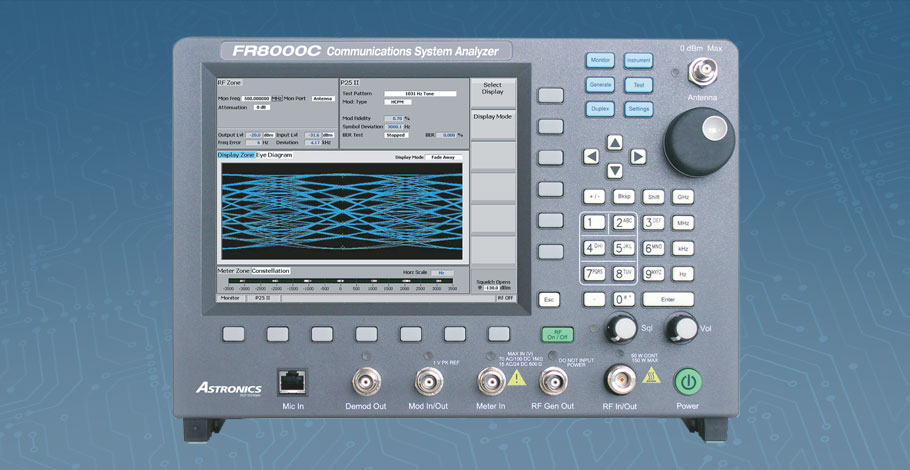

R8000C

The R8000C offers complete benchtop functionality in a portable, software-defined package. Testing every major LMR protocol, it is highly expandable, and boasts lab-grade spectral purity. Featuring a high-resolution display, modular design, and extensive testing functions, it delivers reliable performance and flexible testing.

Key Features

Lightweight, portable design
Upgradeable and expandable with instant firmware upgrades
Superior Spectrum Analyzer
Exceptional Phase Noise performance

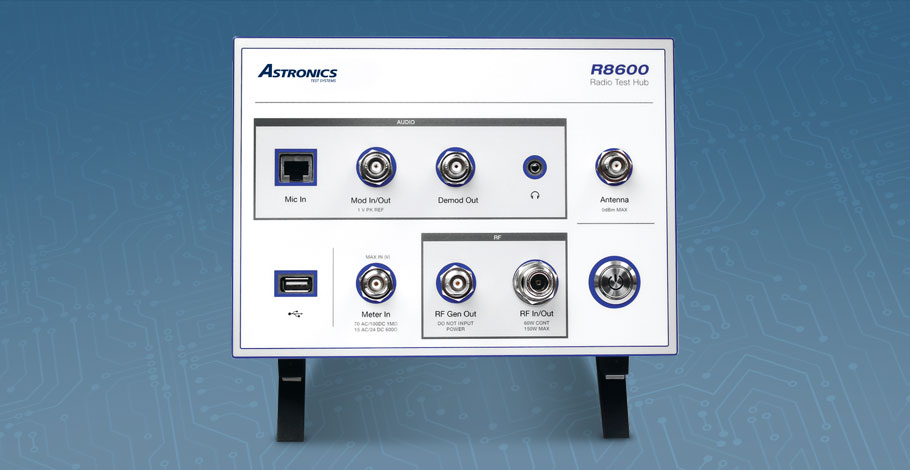

R8600

The R8600 Radio Test Hub is designed to meet the demanding requirements of RF production environments. Providing reliable, easy-to-operate testing for manufacturers of LMR radios and other RF devices, it requires minimal intervention and can withstand 150 Watts of continuous RF power input for 24/7 use. It offers testing for both modern digital radio technologies and for production of analog radios and RF devices.
