The Easy Avionics Interface
These pocket-sized USB adapters are the easy and portable way to interface your computer to ARINC 708 and similar weather radar databuses.
Key Features
- Up to 4 ARINC 708 Channels
- 8 Avionics Discrete I/O
- IRIG A/B PWM and AM
- USB 2.0 Bus Powered—No External Power Supply Needed
- 32 MB Data Memory
- RoHS Compliant Design

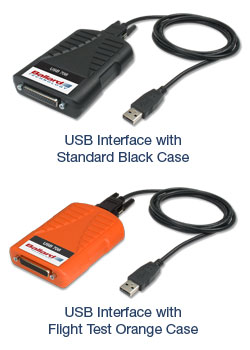

- Standard Black or Flight Test Orange Case
- Small, Portable, and Rugged
- Boards also available without enclosure for embedded use
Applications
- Weather radar, CDU, and T-R unit analysis, test, and simulation
- Flightline and AOG Support
- Replacing Plug-in Cards
- Many More Uses in the Lab or in the Field
Powerful 708 Interfaces
The USB 708 family of pocket-sized USB adapters enable computers to interface with ARINC 708 and similar weather radar display databuses. These rugged USB 2.0 peripherals feature extensive functionality for testing and simulating weather radar systems, CDUs (Control-Display Units), and T-R (Transmit-Receive) units. They are used for monitoring, generating, recording, and playing back data. The ARINC 708 display databus is sometimes referred to as ARINC 453.
These versatile interfaces are suitable for a wide range of applications in the lab and in the field, and are compatible with virtually all modern PC laptop, desktop, and tablet computers. They support maximum data throughput on all 708 channels and have a large 32 MB built-in memory. All power necessary for operation is provided via the single USB port. Plug and Play and Hot Swap features make them easy to install and move between computers.
Hardware
Models are available with one receive and one transmit channel (1R1T) or with two receive and two transmit channels (2R2T). They support simultaneous operation on all available channels and provide software-selectable word lengths and pre-sync pulses to support custom protocols that deviate from ARINC 708. All include eight avionics level input/output discretes and IRIG time synchronization/generation. Once configured, the USB hardware performs all the protocol processing. It manages the reception, transmission, error checking, time-tagging and buffering of messages—freeing your software to focus on high-level application-specific processing.
Software
Develop software applications with the included BTIDriver API, or use Astronics' optional CoPilot software. CoPilot provides powerful, easy-to-use interactive tools for databus test, analysis, and simulation.
ARINC 708 functionality
- Supports standard ARINC 708 and custom weather radar databuses
- Receive, Transmit, and Monitor
- Models available: 1R1T and 2R2T
- Direct coupled channels per 708
- Strappable on-board termination
- LEDs indicate bus traffic and errors
Similar Products
Other portable USB Interfaces are also available with different protocol and software options. Click on the following links for more information:
- Multiple protocol interfaces including MIL-STD-1553, Enhanced Bit Rate 1553 (EBR 1553), ARINC 429, ARINC 708, ARINC 717 and Serial.
- MIL-STD-1553 Interfaces
- ARINC 429 Interfaces
- Portable ARINC 717 Test Sets
- Portable ARINC 615 Data Loaders
Downloads
Specifications
ARINC 708 Interface
- Standard ARINC 708 data
- Syncs - beginning and ending
- 1600 bits per word (64-bit header, 512 3-bit range bins) - Custom data options
- Pre-sync pulses
- Variable word length (1 to 1856 bits per word) - Configurable bit order (LSB or MSB first)
- Strappable bus termination
- ARINC 453 characteristics
ARINC 708 Channel Details
- Internal self-test bus
- Each channel switchable between 2 buses
- Receive and transmit concurrently
Standard Features
- USB 2.0 interface
- 8 Avionics Discrete I/O
- IRIG A/B input and output
- 2 LED indicators
- 32 MB on-board memory
Environmental
- Component temperature: -40 to + 85 deg C
- Storage temperature: -55 to +100 deg C
Mechanical
- Dim: 3.0 x 4.45 x 0.97 inch (76 x 113 x 25 mm)
- Weight: under 5 oz (140 g)
- I/O Connector: HD44F D-Sub
- Secure locking connectors
- Power: Single USB Port
- MTBF: 1,500,000 hours
Software
- Universal BTIDriver API for C/C++, C#, VB, VB.Net, and LabVIEW™
- Windows®, Linux® and Solaris OS drivers
- CoPilot analysis and test software (optional)
- ActiveX Weather Radar Control
- Call for latest language and OS support
Ordering Information
For more information or to request a quote, call +1.425.339.0281 or complete the form above.
| Hardware & CoPilot* | Hardware Only | Number of Channels |
| CP-UA1720 | UA1720 | 2R2T |
| CP-UA1710 | UA1710 | 1R1T |
*Includes CoPilot analysis & test software
nRnT = number of Receive/Transmit channels
Options
To order, add the appropriate suffix to the above part number. Example: UA1720/NE
- /FTO - Flight Test Orange case (black case is standard)
- /NE - No Enclosure, Printed Circuit Board Assembly only, for embedded use
- /FXY - Conformal coating (Parylene)
Accessories (Included with all models except "/NE" option)
- USB cable with screw-locks (5 ft)
- Mating HD44P D-Sub I/O connector
- Manuals and software CD
