AB2-AID - Aircraft Interface Devices

The Ready Solution

The AB2-AID is ready to go with high-performance avionics I/O combined with valuable built-in features such as a 9-port Ethernet switch, Ethernet to serial bridge, and 8GB flash memory. All in a compact, rugged package for easier integration and longer life.

Highly Validated

  • Commercial and military
  • Fixed wing, helicopter, ground mobile
  • DO-160 Certified
  • Rugged: MIL-STD-810
  • EMC quiet: MIL-STD-461

Key Features

  • Optimal combination of avionics I/O and operational features
  • Certified device with FAA Parts Manufacturer Approval (PMA)
  • Based on proven AB2000 design deployed on over 30 aircraft platforms
  • Lightweight and low power
  • Integrated 9-port Ethernet switch
  • Multiple AID models available
  • Numerous expansion options
AB2-AID Aircraft Interface Device

High-Performance Aircraft Interface Devices

Solve avionics system integration and compatibility problems with Astronics' versatile Aircraft Interface Devices. These rugged units are an essential part of many avionics upgrades, such as electronic flight bag (EFB) and in-flight entertainment (IFE) systems, where they serve avionics data while protecting aircraft control domains from interference and corruption.

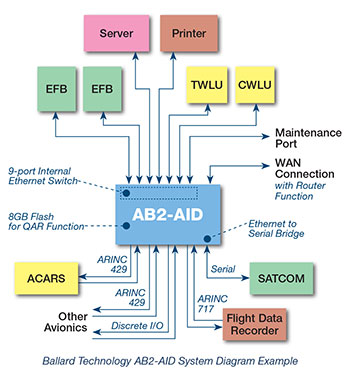

Astronics Ballard Technology AB2-AID System Diagram

Comprehensive AID Solution

The AB2-AID is a comprehensive AID solution with a broad array of avionics I/O and high-level functionality to meet the changing needs of the modern airline industry. It features proven electronic design, rugged construction, and durable 38999 connectors for high reliability and long life. As the preeminent AID on the market, the AB2-AID is ready to manage the most demanding interface programs with valuable built-in features such as a 9-port Ethernet switch, Ethernet to serial bridge, and 8GB flash memory.

Applications

Versatile Aircraft Interface Devices are ideal for a wide variety of mil-aero applications, including:

  • Electronic Flight Bag (EFB) Integration
  • In-flight entertainment systems
  • Data/protocol converting
  • Data concentrating
  • Firewall protection for critical avionics data
  • On-aircraft data loading

Downloads

  pdf-icon  Datasheet
  Download  Manuals, Drivers, etc.

Get More Information

For more information or to request a quote, fill out the form below or call us at:

+1.425.339.0281



Specifications

Avionics Interfaces & I/O

  • ARINC 429
    24 channels (16R/8T)
  • ARINC 717
    4 channels (2R/2T)
  • RS-232/423/422/485
    2 channels
  • Ethernet (WAN)
    Independent or router function
  • Ethernet Switch (LAN)
    9-port Managed Ethernet Switch
    - Eight 10/100 Mbps Ethernet ports
    - One 10/100/1000 Mbps Ethernet port
  • USB 2.0 Host
    2 ports
  • Avionics Discrete I/O
    4 programmable input/output

Optional Interfaces

  • ARINC 708
    Up to 4 channels
  • MIL-STD-1553
    Up to 4 dual-redundant channels

Standard Features

  • PowerPC processor
  • 64 MB SDRAM
  • 16 MB Flash
  • 16 MB Flash
  • Real Time Clock (with 650+ hours of backup power)
  • 1 Ethernet port (10/100)
  • 2 RS-232/423/422/485 (selectable)
  • 2 USB 2.0 host ports
  • Avionics discrete I/O
  • IRIG A or B, AM, PWM and PPS
  • Voltage and temperature monitoring
  • 8 GB Flash drive
  • Power: 28 VDC nominal
  • MTBF: 350,000+ hour

Environmental

  • Extended Temperature
  • Conduction or convection cooled
  • DO-160, MIL-STD-810, MIL-STD-461

Mechanical

  • Compact enclosure: 5.46 x 7.31 x 2.48 in (139 x 186 x 63 mm)
  • Weight: 3.7 lb (1.7 kg)
  • Horizontal mounting kit: 0.9 lb (0.4 kg)
  • Vertical mounting kit: 0.5 lb (0.2 kg)
  • D38999 Connectors

Ordering Information

For more information or to request a quote, call +1.425.339.0281 or complete the form above.

Part Number  Description
50-11026-05  AB2-AID
50-11026-02  Horizontal Mounting Kit
50-11026-03  Vertical Mounting Kit
Additional AID Models
In addition to the 50-1126-05 AB2-AID, Astronics provides additional AID models with other features, as well as custom configured AID solutions based on our proven AB3000, AB2000, and AB1000 Avionics Computer families.
