webCS Wireless Aircraft Communications Server

The Ballard webCS® is the first highly integrated smart AID/server/router that securely bridges avionics data with wired and wireless networks in a single compact box. This wireless aircraft communications server platform is simple to install and configure, safe to interface with aircraft domains, and provides highly secure data transfer. The compact, versatile webCS enables aircraft operators to easily gather and process aircraft data, and then route it to where it is needed—whether on or off the aircraft.

An Aircraft Interface Device and So Much More...

webCS

The webCS performs all of the critical functions of an Aircraft Interface Device (AID): it connects with and gathers needed flight data while isolating and safeguarding aircraft data domains from interference or harm. But then it is able to intelligently process this data, or deliver it via the resident ARINC 834 server, or handle both operations simultaneously. The webCS includes a full complement of built-in avionics interfaces, plus Wi-Fi and cellular communications.

Built-in Interfaces:

  • ARINC 429, 717, 708
  • Serial
  • Discrete I/O
  • Ethernet switch
  • WiFi
  • Cellular

When You Own this Box, You Own Your Aircraft Data

To stay competitive, you need a deeper understanding of your fleet’s performance, and more visibility into the information already present on your aircraft. When you gain access to existing aircraft data, you empower pilots during flight. You also enable flight operations and maintenance—both in route and post flight. The end game? To improve situational awareness, provide passengers with an optimal flight experience, and reduce maintenance and operational costs.

Get the secure, open-architecture approach that empowers you to control your software and your data today—and prepares you to leverage and incorporate the next-generation technologies of tomorrow, including the Internet of Things (IoT) for the aircraft. Make the choice that future-proofs your technology investment.

Contact Us Today and Start Moving Faster than your Competition

Ready to get started? Contact Us

Astronics is Simplifying the Data-Centric Aircraft

Few things are evolving faster than the aircraft connectivity landscape. Technology choices are becoming complex. Choose incorrectly and you not only delay your anticipated benefits, you may run into a technology roadblock and have to start over again. Astronics simplifies the process of adding data-centric technology to commercial and business aircraft. Our innovative webCS combines functions that were traditionally performed by several separate components, simplifying the installation design and deployment process, and saving you significant time and money.

Sync Icon

Concurrent Application Hosting

Robust computer resources allow the webCS to host and run multiple applications that make use of aircraft data and flight parameters. Plus, it is based on open-architecture standards, so is ideal for custom and 3rd-party applications such as EFB apps, flight optimization programs, aircraft health monitoring, and flight logs.

Networks Icon

Wired & Wireless Communications

The webCS manages Ethernet, wireless, and cellular pathways without add-on components. It distributes information throughout the aircraft using its own wireless network, connecting directly with client devices such as those running Apple®, Windows ®, and Android™ OS, or can connect to an existing WAP.

cellular icon

High-Speed Cellular Data Connectivity

When moving data off-board the aircraft, the integral cellular interface allows data connections to 3G/4G LTE cellular networks from multiple providers based on region. The webCS supports dual SIMs to utilize the most cost-effective cellular provider based on location.

Secure

Secure Operation

The webCS can be used with confidence. The IEEE 802.11 a/b/g/n interface provides strong access and data protection using WPA2-Enterprise wireless security. Wireless Ethernet encryption using WPA2-Personal (with PSK or pre-shared key) is also supported.

The webCS at a Glance

Internal or External Antennas

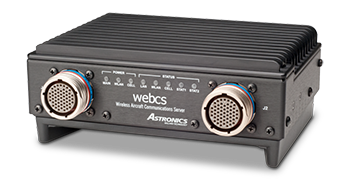

webCS with Internal Antennas

webCS with Integral Wi-Fi and Cellular Antenna Array

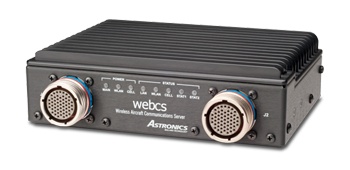

webCS for External Antennas

webCS Configured for Use with External Antennas

Key Product Features

  • Intel Atom E3845 4-core processor
  • 4 GB ECC memory
  • 8 GB eMMC
  • 30-480 GB internal storage
  • USB 3.0 Host (on rear panel)
  • Display Port (on rear panel)
  • 4-port Ethernet switch with VLANs
  • 256-bit secure 802.11 a/b/g/n wireless
  • 3G/4G LTE cellular capability with two SIM cards
  • Small, lightweight & low power
  • Available with integrated low-profile antenna array

Built-in Avionics Interfaces

  • ARINC 429
    20 channels (12R/8T)
  • ARINC 717
    2 channels (2R)
  • ARINC 708
    2 channels (1R/1T)
  • Serial
    1 RS-232 console
    1 RE-232/422
    2 RS-422/485
  • Discrete I/O
    4 outputs (Open/GND) with readback
    12 inputs (Open/GND or 28V/Open)

Ordering Information

Please contact our Customer Service Department for assistance in choosing the correct model for your application. For more information or to request a quote, call +1.425.339.0281 or fill out the form at the bottom of the page.

Cables & Accessories

A wide variety of cables and accessories are available to complement these products.
