Aircraft Power Distribution

Product Information

Electronic Circuit Breaker Units

CorePower® Electronic Circuit Breaker Units (ECBUs) used in power distribution systems have the unique capability to be conveniently located throughout aircraft. Smaller and lighter than their conventional counterparts, ECBUs create a more evenly distributed system. This distributed system allows for less wire throughout the aircraft, as well as aids in arc fault detection, replacement of many switches, relays, controllers, and contactors.

Performance/Reliability Advantage

• Up to 20 times higher system reliability (electronic circuit breakers versus traditional breakers)
• Certified and flying in many power systems

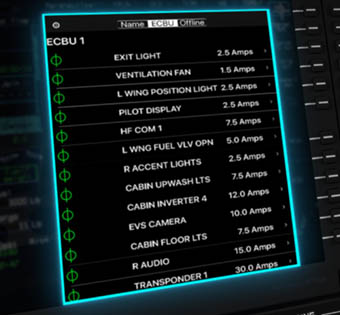

• Current and voltage data automatically reported

Significant Size and Weight Advantage

• Overall reduction of wire weight by 30%
• Smaller LRUs reduce wire weight and volume

Safety & Certification

• Each electronic circuit breaker has both I2t protection and a fast response feature to prevent false trips
• Environmental qualification (RTCA/DO-160E), software qualification (RTCA/DO-178A)
• Qualified and certified on Part 23 aircraft, qualified on Part 25 aircraft
• Dual redundant digital interface via RS-485 digital bus

Improved Pilot Experience

• Intelligent system integrates and automates control functions with fewer panels than before reducing pilot workload
• Modernized cockpit look and feel

For more information or to request a quote, call +1.425.881.1700 or contact sales.
