In-Seat Power Supply

In-Seat Power Supply

The EmPower® in-seat power supply (ISPS) intelligently converts and manages 28VDC or 110VAC to multiple outputs of 110VAC/60Hz and provides 28VDC for USB. One ISPS can power any combination of three AC and four USB outlets.

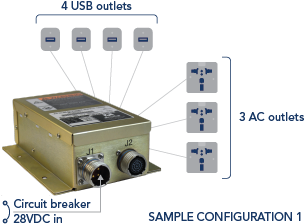

in-seat-power-supply-configuration-1

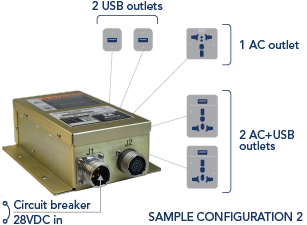

in-seat-power-supply-configuration-2

For USB-only applications, you can power the 1428 USB outlet off 28 VDC aircraft power.

Included safety features with this inverter, such as ground fault interruption, overcurrent, overvoltage, and plug detect, make installation faster and easier. The EmPower system from Astronics is flexible and expandable to fit any size aircraft.

28VDC to 110 Volt AC In-Seat Power Supply

28VDC to 110 Volt AC In-Seat Power SupplyDesigned for charging portable electronic devices for passengers and crew, this unit converts and manages 28VDC to up to three 110VAC/60Hz outlets with up to 175VA to each outlet.

Intended for use with the following outlet unit:

  • 1235-8, 110 Volt AC Outlet Unit

Downloads

pdf Datasheet

28VDC to 110 Volt AC & 5VDC USB In-Seat Power Supply

28VDC to 110 Volt AC & 5VDC USB In-Seat Power SupplyDesigned for charging portable electronic devices for passengers and crew, this unit converts and manages 28VDC to multiple outlets of 115VAC/60Hz and provides 28VDC for USB. This power supply supports any combination of up to three AC outlets at 175VA each or up to four USB outlets with conditioned 28VDC.

Intended for use with the following outlet units:

  • 1235-8, 110 Volt AC Outlet Unit
  • 1295-8, Dual 110 Volt AC and USB Outlet Unit
  • 1428-10 or -20, 5 Volt DC/2.1A USB Outlet Unit

Downloads

pdf Datasheet

110VAC 400Hz to 110 Volt 60Hz AC & 5VDC USB In-Seat Power Supply

1191-46 power supplyDesigned for charging portable electronic devices for passengers and crew, this unit converts and manages 110VAC 400Hz to multiple outlets of 115VAC/60Hz and provides 28VDC for USB. This power supply supports any combination of up to three AC outlets at 175VA each or up to four USB outlets with conditioned 28VDC.

Intended for use with the following outlet units:

  • 1235-5, 110 Volt AC Outlet Unit
  • 1295, Dual 110 Volt AC and USB Outlet Unit
  • 1428-10a or -20, 5 Volt DC/2.1A USB Outlet Unit

Downloads

pdf Datasheet

Ordering Information

For more information, or to request a quote, contact sales.
